Replacement Crane Wheels — Fast Turnaround from Billet Stock
When a crane goes down, lead time matters. UTEC Industrial maintains alloy steel billet stock in AISI (American Iron and Steel Institute) 4140 and 4340 and begins machining replacement wheels without waiting on material procurement. Ships throughout the United States, Canada, and Mexico from Spokane Valley, WA.
What to Send UTEC for a Replacement Quote
A Part Number or OEM Reference
If you have the crane OEM's wheel part number — P&H, Demag, Konecranes, Whiting, or others — send it with the OEM drawing or dimensional data if available. UTEC accepts dimensional references for wheels from major crane manufacturers and quotes the replacement to that specification. If the part number is all you have, add photos and key measurements so UTEC can reverse-engineer the wheel.
A Description or Dimensions
Wheel diameter, bore diameter, tread profile (flat, flanged, V-groove), and alloy grade if known. A photograph of the wheel face and side is helpful. UTEC will ask clarifying questions if needed — a complete description is not required to get the process started.
Photos & Measurements of a Worn Wheel
No documentation at all? Send UTEC photos from multiple angles and key measurements — bore diameter, overall width, and any readable OD. No need to ship the part. UTEC reconstructs the geometry from your submission, produces engineering drawings for your approval, and manufactures exact-fit replacements.
In-Stock Billet Means We Can Start Today
Most crane wheel manufacturers quote lead times that include material procurement — weeks spent waiting for billet before machining even begins. UTEC eliminates that delay by maintaining alloy steel billet stock in AISI 4140 and 4340, the two grades that cover the majority of industrial crane wheel applications. When you place an order for a standard alloy, production can begin the same day.

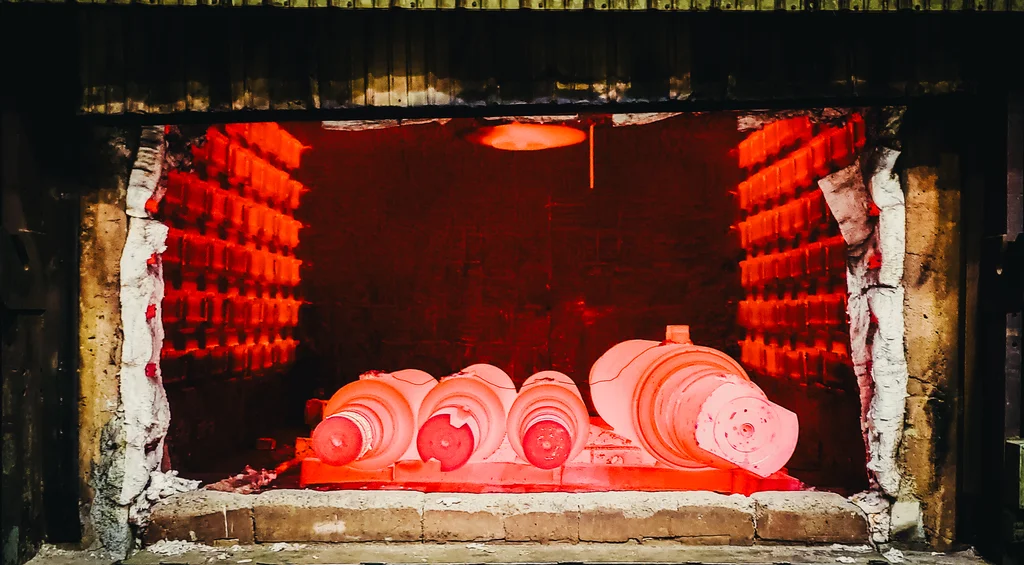

In-house induction hardening further compresses the timeline. There is no subcontractor handoff between machining and heat treatment — UTEC hardens, tests, and inspects every wheel under one roof in Spokane Valley. The result is a replacement wheel manufactured from raw billet to finished, hardened, inspected product without leaving UTEC's facility.
Ships Throughout the United States, Canada, and Mexico
UTEC ships replacement crane wheels throughout North America — United States, Canada, and Mexico. Orders are manufactured in Spokane Valley, Washington and ship by common carrier or expedited freight based on your timeline. Buyers in the Pacific Northwest benefit from shorter freight runs, but UTEC supplies customers from coast to coast on the same terms. Emergency freight is available for active downtime situations.
Call now for lead time and availability:
What UTEC Can Replace
| Capability | Specification |
|---|---|
| Tread Diameter | 6-inch to 48-inch |
| Alloy Grades | AISI 1045, 4140, 4340, 8620 — 4140 and 4340 in stock |
| Tread Hardness | 50–58 HRC (Rockwell C hardness) standard; other values to customer specification |
| Hardening Method | In-house induction hardening — no subcontracting |
| Tread Profiles | Flat, tapered, single-flange, double-flange, V-groove, custom |
| Bore Types | Press-fit, thermal installation (shrink-fit), keyed, bearing assembly |
| Input Accepted | OEM part number, engineering drawing, dimensions, worn sample, photograph |
| Documentation | Raw material chemistry, hardness test reports, dimensional inspection |
| Ships To | United States, Canada, Mexico |
Frequently Asked Questions
What is UTEC's typical lead time for replacement crane wheels?
Lead time depends on wheel diameter, alloy grade, and current shop load. For standard alloy grades in UTEC's billet inventory (AISI 4140 and 4340), production can begin immediately upon receipt of a complete drawing or approved reverse-engineered dimensions. Expedited production is available for emergency downtime situations. Call (509) 922-1832 with your wheel specification and UTEC will provide a current lead time estimate — this is the fastest path to an accurate answer, as shop load changes daily.
What information do I need to provide to get a replacement quote?
The minimum information needed is: outside diameter (or bore diameter if the tread is too worn to measure reliably), bore diameter, tread profile (flat, flanged, or V-groove), and overall wheel width. Alloy grade and hardness specification are needed to confirm material — if unknown, UTEC can advise based on service class and crane duty cycle. If you have a part number, drawing, or photograph, send those as well. A worn wheel is the most complete input — UTEC measures everything from the physical sample.
Can UTEC match an existing wheel if I only have the OEM part number?
Not from the part number alone — send it with dimensional data or with photos and measurements of the wheel. UTEC accepts dimensional references for wheels from major crane manufacturers including P&H, Demag, Konecranes, Whiting, and others — an OEM drawing, data sheet, or manual page lets UTEC quote directly to that specification. With photos plus the bore diameter, overall width, and any readable outside diameter, UTEC reverse-engineers the geometry and sends a dimensioned drawing for your approval before machining. No need to ship the part.
Does UTEC ship replacement wheels to customers outside the Pacific Northwest?
Yes. UTEC ships crane wheels throughout the United States, Canada, and Mexico. Regular customers include facilities in California, Texas, the Gulf Coast region, the Midwest, and the East Coast. Shipping method is coordinated with the customer based on timeline requirements — standard common carrier for non-emergency orders, expedited freight when downtime is active. UTEC's Spokane Valley location provides a freight advantage for Pacific Northwest buyers, but there is no geographic restriction on UTEC's customer base.
What if my crane wheel has no drawing or part number — just a worn wheel?
Send UTEC photos and measurements — no need to ship the part. Photos from multiple angles (face, side, bore end, any unworn surfaces) plus bore diameter, overall width, and any readable OD are enough to start the reverse engineering process. UTEC reconstructs the geometry from your submission, produces a dimensioned drawing for your approval, and manufactures exact-fit replacements. See the full process on the Reverse Engineering page.
Request a Replacement Quote — We Respond Within One Business Day
Send UTEC your part number, dimensions, photographs, or measurements of a worn wheel. We will confirm lead time and begin production as fast as your situation requires.
