Gantry & Portal Crane Wheels — Up to 48-Inch Diameter

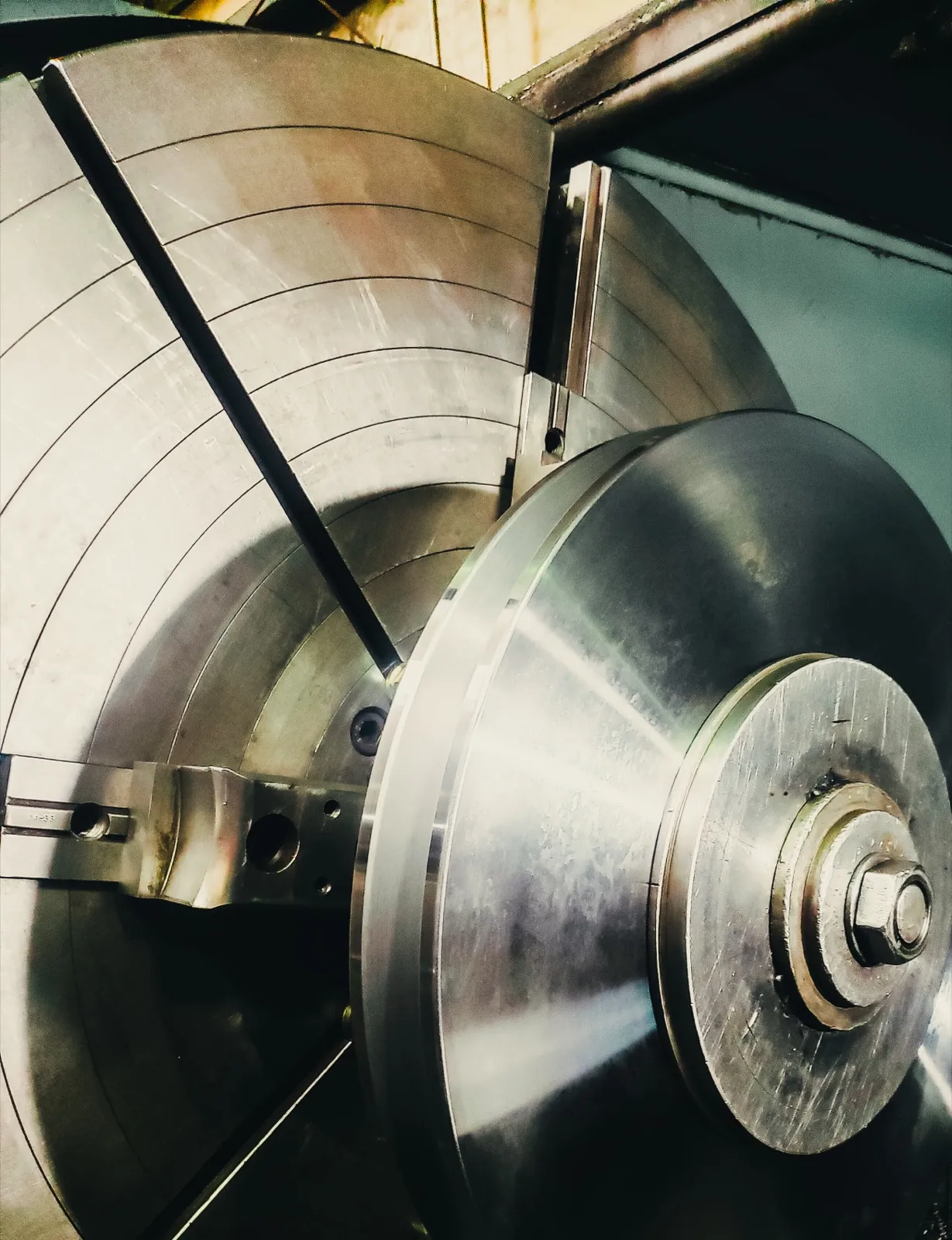

UTEC can manufacture gantry crane wheels up to 48 inches in diameter and 60 inches in length on its Mazak and Monarch CNC lathes. Most standard industrial gantry crane wheels fall in the 18–36 inch range; wheels above 36 inches are less common but not unusual in large shipyard portal cranes, transfer crane applications, and heavy industrial gantry systems. If your wheel diameter exceeds 48 inches, contact UTEC — for exceptional cases, alternative manufacturing approaches may be available.

For outdoor gantry cranes in temperate or dry climates, AISI 4140 is the standard specification for Class C and D service — the same as indoor overhead cranes. For coastal environments with salt spray, marine terminals, shipyards, and other corrosive outdoor settings, AISI 4340 is preferred. The nickel-chromium-molybdenum chemistry of 4340 provides better resistance to stress corrosion cracking in the hardened martensitic case, where 4140 can be susceptible to hydrogen embrittlement and stress corrosion in salt-rich environments under sustained contact stress. 4340 also provides superior toughness in low-temperature service, which matters for outdoor cranes in northern climates.

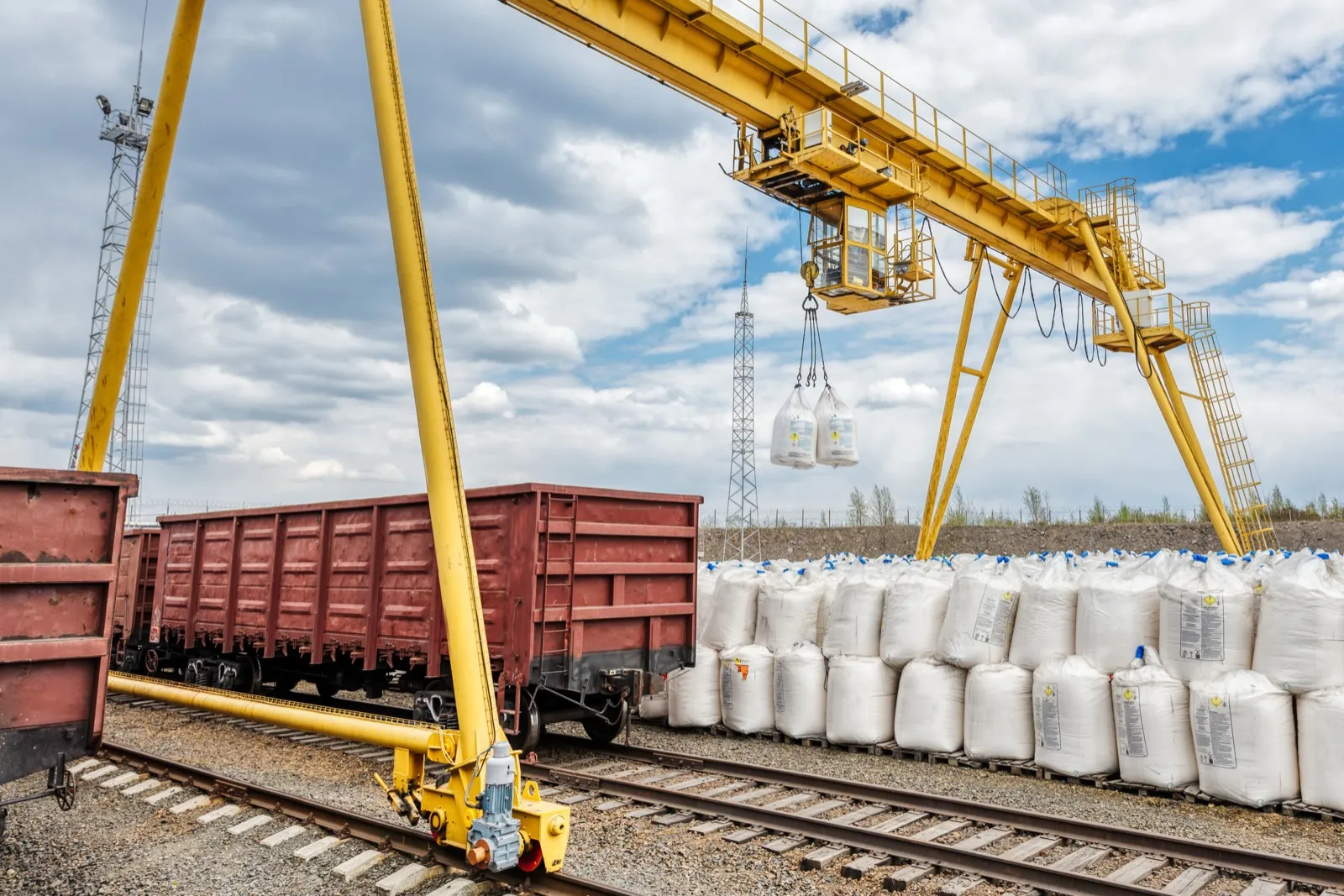

Outdoor gantry cranes are subject to lateral forces that indoor bridge cranes are not: wind load on the crane structure and any load it is carrying, grade variations in ground-level rail installations, and thermal expansion differences between the two rail lines (which run in different solar exposures). These forces push the crane against the rail lateral, and without positive guidance on both sides of the rail, the wheel would ride up and over the rail under sufficient lateral load. Double-flange provides positive engagement on both sides, ensuring the wheel stays on the rail regardless of the direction of lateral force. For semi-gantry applications with one leg on a runway, the runway end truck is typically double-flanged while the ground-rail end truck may be single-flange, depending on the lateral guidance design.

Yes — the reverse engineering process is the same for gantry wheels as for any other crane wheel type. The key additional consideration for large-diameter gantry wheels is tread diameter estimation when the tread is uniformly worn: UTEC uses the crane's rated capacity and rail gauge combined with standard gantry crane design practice to reconstruct the original wheel diameter within the nearest standard size increment. Send UTEC photos and measurements — no need to ship the part. The reconstructed drawing is sent to the customer for approval before machining begins. Call (509) 922-1832 or use the contact form to start the process.
